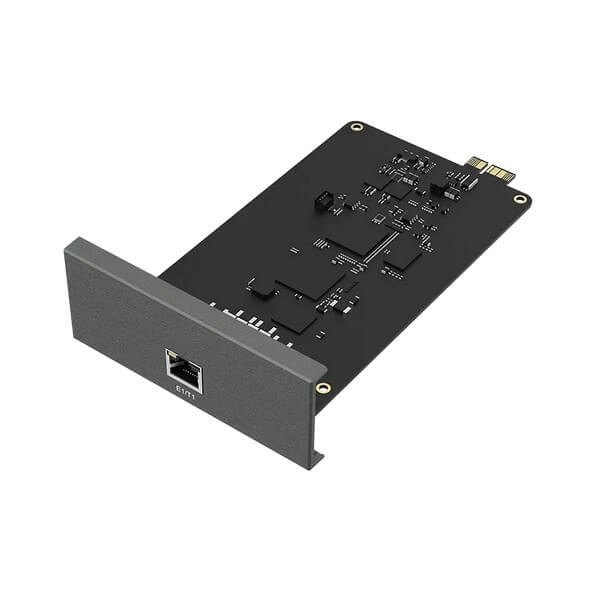

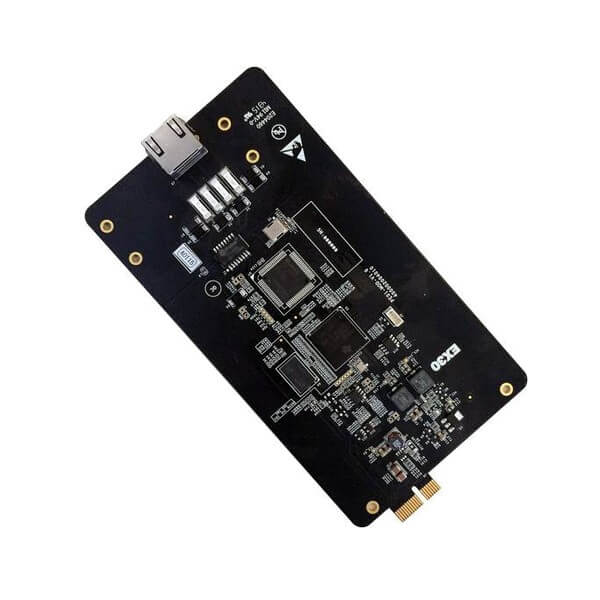

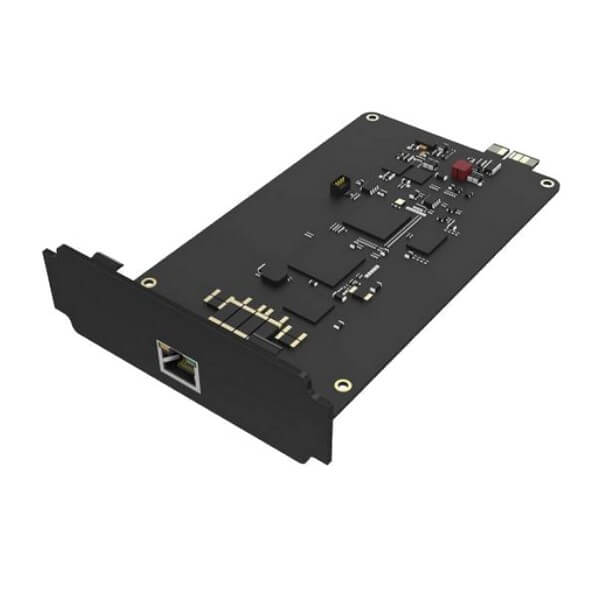

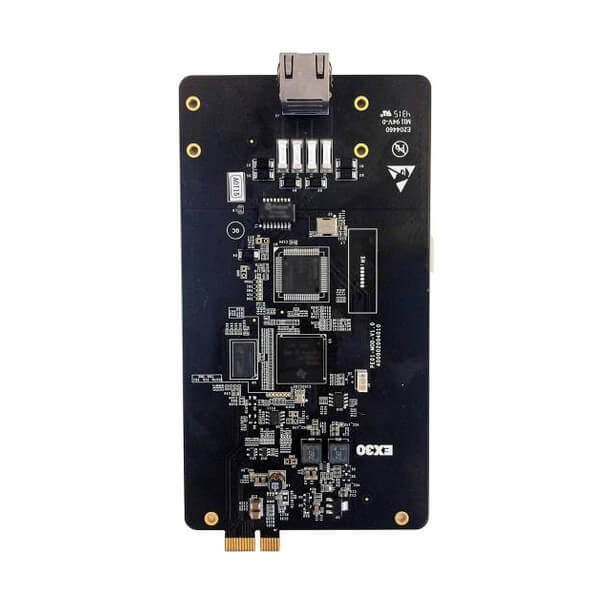

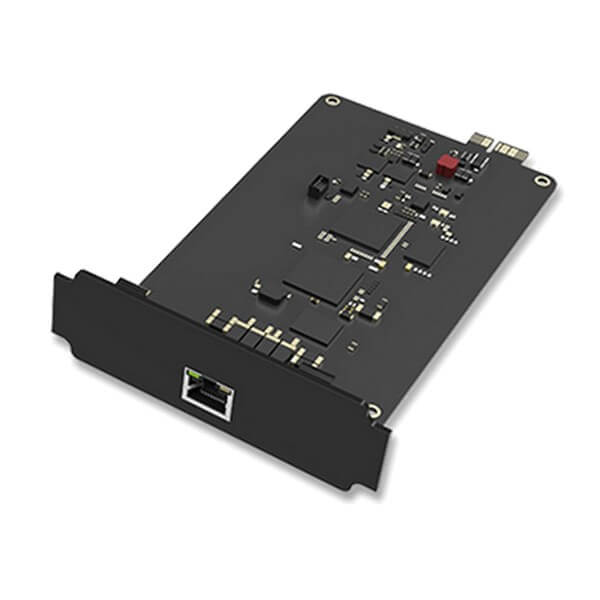

Yeastar EX30 Expansion Board Dubai | E1/T1 PRI Card UAE
Modern enterprises in Dubai rely heavily on advanced communication infrastructure to manage internal operations and customer interactions. Therefore, organizations require scalable PBX systems that support both VoIP and digital telephony integration. The Yeastar EX30 Expansion Board Dubai addresses this requirement by providing a dedicated E1/T1/PRI interface for Yeastar IP PBX systems.Traditional telephony systems still play an essential role in many businesses, especially those that depend on PRI lines for high-volume communication. However, companies also adopt VoIP solutions to reduce costs and improve flexibility. Consequently, the Yeastar EX30 Expansion Board UAE acts as a bridge between these two technologies, enabling seamless integration between digital PSTN lines and VoIP systems.
Furthermore, the Yeastar EX30 PRI Card Dubai allows businesses to expand their communication capacity without replacing their entire PBX infrastructure. The module adds one E1/T1/PRI port, which supports multiple voice channels and ensures efficient call handling.Additionally, organizations benefit from the modular design of Yeastar PBX systems. The EX30 board fits into available expansion slots in supported models such as S100 and S300. Therefore, businesses can customize their communication system based on operational requirements.Fourteck delivers the Yeastar EX30 Expansion Board Dubai with expert consultation, installation, and support services. As a result, companies across the UAE achieve reliable communication performance while maintaining scalability for future growth.
Features of Yeastar EX30 Expansion Board
1-Port E1/T1/PRI Interface
The Yeastar EX30 Expansion Board provides a single E1/T1/PRI port that allows businesses to connect digital telephony lines directly to their PBX system. This feature ensures high-quality voice communication and reliable connectivity.
High Channel Capacity
The module supports up to 30 simultaneous calls for E1 and 24 calls for T1 connections. Therefore, organizations can manage high call volumes efficiently while maintaining excellent voice clarity.
Seamless PBX Integration
The Yeastar EX30 PRI Card Dubai integrates directly with Yeastar S100 and S300 IP PBX systems. Consequently, businesses can expand their communication infrastructure without replacing existing hardware.
Plug-and-Play Installation
The module features plug-and-play functionality that simplifies installation. Therefore, IT teams can deploy the system quickly without complex configuration processes.
Scalable Communication Expansion
Businesses can install multiple EX30 boards depending on the PBX model. For example, S100 supports up to 2 boards, while S300 supports up to 3 boards.
Specifications
| Specification | Details |
|---|---|
| Model | Yeastar EX30 |
| Type | E1/T1/PRI Expansion Board |
| Ports | 1 × E1/T1/PRI |
| Channels | 30 (E1) / 24 (T1) |
| Interface | RJ45 |
| Compatibility | Yeastar S100, S300 |
| Signaling | ISDN PRI, MFC/R2, SS7 |
| Line Coding | HDB3 (E1), B8ZS (T1) |
| Framing | CRC4, ESF/D4 |
| Installation | Plug-and-Play |
| Power Supply | PBX Powered |
| Hot Swappable | Yes |
| Dimensions | Compact module |
| Use Case | Digital trunk expansion |
Benefits of Yeastar EX30 Expansion Board for Dubai Businesses
Seamless Digital Integration
Businesses in Dubai often rely on PRI lines for high-volume communication. Therefore, the Yeastar EX30 Expansion Board Dubai enables smooth integration with digital telephony networks.
Cost Optimization
The module allows businesses to combine VoIP and traditional telephony. Consequently, organizations reduce communication costs while maintaining flexibility.
Enhanced Call Capacity
The EX30 module significantly increases call handling capacity. Therefore, companies can manage large call volumes without performance issues.
Future-Proof Communication
Businesses can expand their PBX system gradually. As a result, the communication infrastructure remains scalable and adaptable to growth.
Why Choose Fourteck for Yeastar EX30 in Dubai
Fourteck delivers advanced VoIP and PBX solutions across the UAE. Therefore, businesses receive reliable support when implementing the Yeastar EX30 Expansion Board Dubai.
Fourteck Services:
- PBX consultation and system design
- Professional installation and integration
- PRI and SIP trunk configuration
- Ongoing maintenance and support
- UAE-wide deployment services
Use Cases in UAE Market
The Yeastar EX30 Expansion Board Dubai suits various industries:
- Call centers handling high call volumes
- Corporate offices using PRI lines
- Hotels and hospitality sector
- Healthcare communication systems
- Government and enterprise environments
Frequently Asked Questions
What is Yeastar EX30 Expansion Board?
The Yeastar EX30 Expansion Board Dubai is a module that adds one E1/T1/PRI port to compatible Yeastar PBX systems.
Which PBX systems support EX30?
It supports Yeastar S100 and S300 systems.
How many calls can EX30 handle?
It supports up to 30 simultaneous calls (E1) or 24 calls (T1).
Can I install multiple EX30 boards?
Yes, depending on the PBX model, multiple boards can be installed for expansion.
Where to buy Yeastar EX30 Expansion Board in Dubai?
Businesses can purchase from Fourteck with full installation and support services across UAE
